In this chapter, we will explore some of the most basic ideas of geometry including points, lines, rays, line segments and angles. These ideas form the building blocks of ‘plane geometry’, and will help us in understanding more advanced topics in geometry such as the construction and analysis of different shapes.
2.1 Point
Mark a dot on the paper with a sharp tip of a pencil. The sharper the tip, the thinner will be the dot. This tiny dot will give you an idea of a point. A point determines a precise location, but it has no length, breadth or height. Some models for a point are given below.
The tip of a compass
The sharpened end of a pencil
The pointed end of a needle
If you mark three points on a piece of paper, you may be required to distinguish these three points. For this purpose, each of the three points may be denoted by a single capital letter such as
PZ
Z, P and T. These points are read as ‘Point Z’, ‘Point P’ and ‘Point T’. Of course, the dots represent precise locations and must be imagined to be invisibly thin.
2.2 Line Segment
Fold a piece of paper and unfold it. Do you see a crease? This gives the idea of a line segment. It has two end points, A and B.Mark any two points A and B on a sheet of paper. Try to connect A to B by various routes (Fig. 2.1).What is the shortest route from A to B? This shortest path from point A to Point B (including A and B) as shown here is called the line segment from A to B. It is denoted by either AB or BA. The points A and B are called the end points of the line segment AB.
2.3 Line
Imagine that the line segment from A to B (i.e., AB) is extended beyond A in one direction and beyond B in the other direction without any end (see Fig. 2.2). This is a model for a line. Do you think you can draw a complete picture of a line? No. Why?A line through two points A and B is written as AB. It extends forever in both directions. Sometimes a line is denoted by a letter like l or m.Observe that any two points determine a unique line that passes through both of them.
2.4 Ray
A ray is a portion of a line that starts at one point (called the starting point or initial point of the ray) and goes on endlessly in a direction. The following are some models for a ray:
Beam of light from a lighthouse Ray of light from a torch Sun rays
Look at the diagram (Fig. 2.3) of a ray. Two points are marked on it. One is the starting point A and the other is a point P on the path of the ray. We then denote the ray by AP.
Figure it Out
1.
Rihan marked a point on a piece of paper. How many lines can he draw that pass through the point?
Sheetal marked two points on a piece of paper. How many different lines can she draw that pass through both of the points?
Can you help Rihan and Sheetal find their answers?
2. Name the line segments in Fig. 2.4. Which of the five marked points are on exactly one of the line segments? Which are on two of the line segments?
3. Name the rays shown in Fig. 2.5. Is T the starting point of each of these rays?
NB
4. Draw a rough figure and write labels appropriately to illustrate each of the following:
a. OP and OQ meet at O.
b. XY and PQ intersect at point M.
c. Line l contains points E and F but not point D.
d. Point P lies on AB.
5. In Fig. 2.6, name:
a. Five points
b. A line
OC
c. Four rays
d. Five line segmentsDE
6. Here is a ray OA (Fig. 2.7). It starts at O and passes through the point A. It also passes through the point B.
a. Can you also name it as OB ? Why?
b. Can we write OAas AO? Why or why not?
2.5 Angle
arm
An angle is formed by two rays having a common starting point. Here is an angle formed by rays BD and BE where B is the common starting point (Fig. 2.8).The point B is called the vertex of the angle, and the rays BD and BE are called the arms of the angle. How can we name this angle? We can simply use the vertex and say that it is the Angle B. To be clearer, we use a point on each of the arms together with the vertex to name the angle. In this case, we name the angle as Angle DBE or Angle EBD. The word angle can be replaced by the symbol ‘∠’, i.e., ∠DBE or ∠EBD. Note that in specifying the angle, the vertex is always written as the middle letter.To indicate an angle, we use a small curve at the vertex (refer to Fig. 2.9).Vidya has just opened her book. Let us observe her opening the cover of the book in different scenarios.
vertex
arm
Case 1 Case 2 Case 3 Case 4 Case 5 Case 6
Do you see angles being made in each of these cases? Can you mark their arms and vertex?
Which angle is greater—the angle in Case 1 or the angle in Case 2?
Just as we talk about the size of a line based on its length, we also talk about the size of an angle based on its amount of rotation. So, the angle in Case 2 is greater as in this case she needs to rotate the cover more. Similarly, the angle in Case 3 is even larger than that of Case 2, because there is even more rotation, and Cases 4, 5, and 6 are successively larger angles with more and more rotation.
The size of an angle is the amount of rotation or turn that is needed about the vertex to move the first ray to the second ray.
Final position of ray
Amount of turn is the size of
the angle
VertexInitial position of ray
Let’s look at some other examples where angles arise in real life by rotation or turn:
• In a compass or divider, we turn the arms to form an angle. The vertex is the point where the two arms are joined. Identify the arms and vertex of the angle. • A pair of scissors has two blades. When we open them (or ‘turn them’) to cut something, the blades form an angle. Identify the arms and the vertex of the angle.
• Look at the pictures of spectacles, wallet and other common objects. Identify the angles in them by marking out their arms and vertices.
Do you see how these angles are formed by turning one arm with respect to the other?
Teacher’s Note
Teacher needs to organise various activities with the students to recognise the size of an angle as a measure of rotation.
Figure it Out
1. Can you find the angles in the given pictures? Draw the rays forming any one of the angles and name the vertex of the angle.
BC
2. Draw and label an angle with arms ST and SR.
3. Explain why ∠APB cannot be labelled as ∠P.
Math Talk
PB
4. Name the angles marked in the given figure.
TR
5. Mark any three points on your paper that are not on one line. Label them A, B, C. Draw all possible lines going through pairs of these points. How many lines do you get? Name them. How many angles can you name using A, B, C? Write them down, and mark each of them with a curve as in Fig. 2.9.
6. Now mark any four points on your paper so that no three of them are on one line. Label them A, B, C, D. Draw all possible lines going through pairs of these points. How many lines do you get? Name them. How many angles can you name using A, B, C, D? Write them all down, and mark each of them with a curve as in Fig. 2.9.
2.6 Comparing Angles
Look at these animals opening their mouths. Do you see any angles here? If yes, mark the arms and vertex of each one. Some mouths are open wider than others; the more the turning of the jaws, the larger the angle! Can you arrange the angles in this picture from smallest to largest?
Is it always easy to compare two angles?
Math Talk
Here are some angles. Label each of the angles. How will you compare them?Draw a few more angles; label them and compare.
Comparing angles by superimpositionAny two angles can be compared by placing them one over the other, i.e., by superimposition. While superimposing, the vertices of the angles must overlap.After superimposition, it becomes clear which angle is smaller and which is larger.
PA
CQ
RQ (B)
CR
The picture shows the two angles superimposed. It is now clear that
∠PQR is larger than ∠ABC.
Equal angles. Now consider ∠AOB and ∠XOY in the figure. Which is greater?
XA
OB
YO
OBY
The corners of both of these angles match and the arms overlap with each other, i.e., OA ↔ OX and OB ↔ OY. So, the angles are equal in size.The reason these angles are considered to be equal in size is because when we visualise each of these angles as being formed out of rotation, we can see that there is an equal amount of rotation needed to move OB to OA and OY to OX.From the point of view of superimposition, when two angles are superimposed, and the common vertex and the two rays of both angles lie on top of each other, then the sizes of the angles are equal.
Where else do we use superimposition to compare?
Math Talk
Figure it Out
1. Fold a rectangular sheet of paper, then draw a line along the fold created. Name and compare the angles formed between the fold and the sides of the paper. Make different angles by folding a rectangular sheet of paper and compare the angles. Which is the largest and smallest angle you made?2. In each case, determine which angle is greater and why.
a. ∠AOB or ∠XOY
b. ∠AOB or ∠XOB
c. ∠XOB or ∠XOC Discuss with your friends on how you decided which one is greater.
OBC
Math Talk
3. Which angle is greater: ∠XOY or ∠AOB? Give reasons.
OB
Comparing angles without superimpositionTwo cranes are arguing about who can open their mouth wider, i.e., who is making a bigger angle. Let us first draw their angles. How do we know which one is bigger? As seen
before, one could trace these angles, superimpose them and then check. But can we do it without superimposition?Suppose we have a transparent circle which can be moved and placed on figures. Can we use this for comparison? Let us place the circular paper on the angle made by the first crane. The circle is placed in such a way that its centre is on the vertex of the angle. Let us mark the points A and B on the edge circle at the points where the arms of the angle pass through the circle.
BB
OO
AA
Can we use this to find out if this angle is greater than, or equal to or smaller than the angle made by the second crane? Let us place it on the angle made by the second crane so that the vertex coincides with the centre of the circle and one of the arms passes through OA.
BY
Can you now tell which angle is bigger?
Which crane was making the bigger angle?If you can make a circular piece of transparent paper, try this method to compare the angles in Fig. 2.10 with each other.
Teacher’s Note
A teacher needs to check the understanding of the students around the notion of an angle. Sometimes students might think that increasing the length of the arms of the angle increases the angle. For this, various situations should be posed to the students to check their understanding on the same.
2.7 Making Rotating Arms
Let us make ‘rotating arms’ using two paper straws and a paper clip by following these steps:
1. Take two paper straws and a paper clip.
2. Insert the straws into the arms of the paper clip.
3. Your rotating arm is ready!
Make several ‘rotating arms’ with different angles between the arms. Arrange the angles you have made from smallest to largest by comparing and using superimposition.
Passing through a slit: Collect a number of rotating arms with different angles; do not rotate any of the rotating arms during this activity.
Take a cardboard and make an angle-shaped slit as shown below by tracing and cutting out the shape of one of the rotating arms.
Now, shufÒe and mix up all the rotating arms. Can you identify which of the rotating arms will pass through the slit? The correct one can be found by placing each of the rotating arms over the slit. Let us do this for some of the rotating arms:
Slit angle is greater than the arms’ angle. The arms will not go through the slit.
Slit angle is less than the arms’ angle. The arms will not go through the slit.
Slit angle is equal to the arms’ angle. The arms will go through the slit.
Only the pair of rotating arms where the angle is equal to that of the slit passes through the slit. Note that the possibility of passing through the slit depends only on the angle between the rotating arms and not on their lengths (as long as they are shorter than the length of the slit).
Challenge: Reduce this angle. Angle reduced.The angle is still the same!
2.8 Special Types of Angles
Let us go back to Vidya’s notebook and observe her opening the cover of the book in different scenarios. She makes a full turn of the cover when she has to write while holding the book in her hand. She makes a half turn of the cover when she has to open it on her table. In this case, observe the arms of the angle formed. They lie in a straight line. Such an angle is called a straight angle.
AOB
Let us consider a straight angle ∠AOB. Observe that any ray OC divides it into two angles, ∠AOC and ∠COB.
Is it possible to draw OC such that the two angles are equal to each other in size?
Math Talk
Let’s Explore
We can try to solve this problem using a piece of paper. Recall that when a fold is made, it creates a crease which is straight.Take a rectangular piece of paper and on one of its sides, mark the straight angle AOB. By folding, try to get a line (crease) passing through O that divides ∠AOB into two equal angles.How can it be done?
Fold the paper such that OB overlaps with OA. Observe the crease and the two angles formed.
Justify why the two angles are equal. Is there a way to superimpose and check? Can this superimposition be done by folding? Each of these equal angles formed are called right angles. So, a straight angle contains two right angles.
Because they're always right.
Why shouldn't you argue with a 90 ̊ angle?
If a straight angle is formed by half of a full turn, how much of a full turn will form a right angle?
Observe that a right angle resembles the shape of an ‘L’. An angle is a right angle only if it is exactly half of a straight angle. Two lines that meet at right angles are called perpendicular lines.
Figure it Out
1. How many right angles do the windows of your classroom contain? Do you see other right angles in your classroom?
2. Join A to other grid points in the figure by a straight line to get a straight angle. What are all the different ways of doing it?
ABA
3. Now join A to other grid points in the figure by a straight line to get a right angle. What are all the different ways of doing it?
ABA
Hint: Extend the line further as shown in the figure below. To get a right angle at A, we need to draw a line through it that divides the straight angle CAB into two equal parts.
4. Get a slanting crease on the paper. Now, try to get another crease that is perpendicular to the slanting crease.
a. How many right angles do you have now? Justify why the angles are exact right angles.
b. Describe how you folded the paper so that any other person who doesn’t know the process can simply follow your description to get the right angle.
Classifying Angles
Angles are classified in three groups as shown below. Right angles are shown in the second group. What could be the common feature of the other two groups?
In the first group, all angles are less than a right angle or in other words, less than a quarter turn. Such angles are called acute angles.In the third group, all angles are greater than a right angle but less than a straight angle. The turning is more than a quarter turn and less than a half turn. Such angles are called obtuse angles.
Figure it Out
1. Identify acute, right, obtuse and straight angles in the previous figures.
2. Make a few acute angles and a few obtuse angles. Draw them in different orientations.
3. Do you know what the words acute and obtuse mean? Acute means sharp and obtuse means blunt. Why do you think these words have been chosen?
4. Find out the number of acute angles in each of the figures below.
What will be the next figure and how many acute angles will it have? Do you notice any pattern in the numbers?
2.9 Measuring Angles
We have seen how to compare two angles. But can we actually quantify how big an angle is using a number without having to compare it to another angle?We saw how various angles can be compared using a circle. Perhaps a circle could be used to assign measures for angles?
To assign precise measures to angles, mathematicians came up with an idea. They divided the angle in the centre of the circle into
360 equal angles or parts. The angle measure of each of these unit parts is 1 degree, which is written as 1°.This unit part is used to assign measure to any angle: the measure of an angle is the number of 1° unit parts it contains inside it. For example, see this figure:
30 units
It contains 30 units of 1° angle and so we say that its angle measure is 30°.
Measures of different angles: What is the measure of a full turn in degrees? As we have taken it to contain 360 degrees, its measure is 360°.
What is the measure of a straight angle in degrees? A straight angle is half of a full turn. As a full-turn is 360°, a half turn is 180°.What is the measure of a right angle in degrees? Two right angles together form a straight angle. As a straight angle measures 180°, a right angle measures 90°.
180 units
AOB
AO
90 units
OB
OB
A pinch of historyA full turn has been divided into 360°. Why 360? The reason why we use 360° today is not fully known. The division of a circle into
360 parts goes back to ancient times. The Rigveda, one of the very oldest texts of humanity going back thousands of years, speaks of a wheel with 360 spokes (Verse 1.164.48). Many ancient calendars, also going back over 3000 years—such as calendars of India, Persia, Babylonia and Egypt—were based on having 360 days in a year. In addition, Babylonian mathematicians frequently used divisions of 60 and 360 due to their use of sexagesimal numbers and counting by 60s. Perhaps the most important and practical answer for why mathematicians over the years have liked and continued to use 360 degrees is that 360 is the smallest number that can be evenly divided by all numbers up to 10, aside from 7. Thus, one can break up the circle into 1, 2, 3, 4, 5, 6, 8, 9 or 10 equal parts, and still have a whole number of degrees in each part! Note that 360 is also evenly divisible by 12, the number of months in a year, and by 24, the number of hours in a day. These facts all make the number 360 very useful.
The circle has been divided into 1, 2, 3, 4, 5, 6, 8, 9 10 and 12 parts below. What are the degree measures of the resulting angles? Write the degree measures down near the indicated angles.
Degree measures of different angles

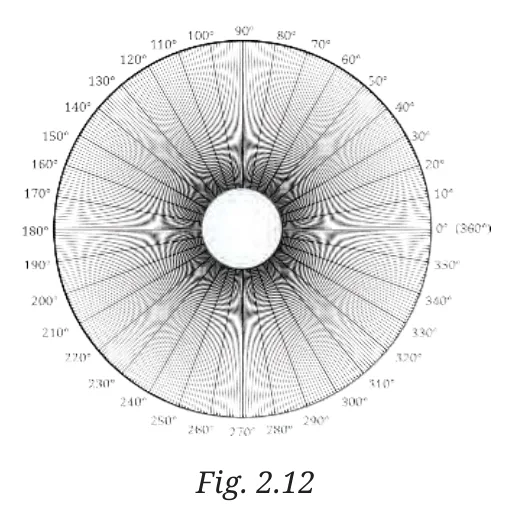

How can we measure other angles in degrees? It is for this purpose that we have a tool called a protractor that is either a circle divided into 360 equal parts as shown in Fig. 2.12 (on page 32), or a half circle divided into 180 equal parts.
Unlabelled protractor
Here is a protractor. Do you see the straight angle at the center divided into 180 units of 1 degree? Only part of the lines dividing the straight angle are visible, though! Starting from the marking on the rightmost point of the base, there is a long mark for every 10°. From every such long mark, there is a medium sized mark after 5°.
Figure it out
1.
Write the measures of the following angles:
a. ∠ KAL Notice that the vertex of this angle coincides with the centre of the protractor. So the number of units of 1 degree angle between KA and AL gives the measure of ∠KAL. By counting, we get — ∠KAL = 30°Making use of the medium sized and large sized marks, is it possible to count the number of units in 5s or 10s?
b. ∠WAL
c. ∠TAK
Labelled protractor
This is a protractor that you find in your geometry box. It would appear similar to the protractor above except that there are numbers written on it. Will these make it easier to read the angles?
There are two sets of numbers on the protractor: one increasing from right to left and the other increasing from left to right. Why does it include two sets of numbers?
Name the different angles in the figure and write their measures.
Did you include angles such as ∠TOQ?Which set of markings did you use — inner or outer?What is the measure of ∠TOS?
Can you use the numbers marked to find the angle without counting the number of markings?Here, OT and OS pass through the numbers 20 and 55 on the outer scale. How many units of 1 degree are contained between these two arms?Can subtraction be used here?
How can we measure angles directly without having to subtract?
Place the protractor so the center is on the vertex of the angle.Align the protractor so that one the arms passes through the 0º mark as in the picture below.
OB
What is the degree measure of ∠AOB?
Make your own Protractor!
You may have wondered how the different equally spaced markings are made on a protractor. We will now see how we can make some of them!1. Draw a circle of a convenient radius on a sheet of paper. Cut out the circle (Fig. 2.13). A circle or one full turn is 360°.2. Fold the circle to get two equal halves and cut it through the crease to get a semicircle. Write ‘0°’ in the bottom right corner of the semicircle.
The measure of half a circle is 12 of a full turn. (Fig. 2.14)So, the measure of half a turn = 12 of ____ = 180°. Thus, write 180° in the left bottom corner of the semicircle.
180 units
AO
3. Fold the semi-circular sheet in half as shown in Fig. 2.15 to form a quarter circle.
The measure of a quarter circle is 14 of a full turn.The measure of a 14 turn = 14 of 360° = ________.Or, the measure of a 14 turn = 12 of a half turn = 12 of 180° = ______. Thus, mark 90° at the top of the semicircle.
90 units
OB
4. Fold the sheet again as shown in Figs. 2.16 and 2.17:
90O
45O
135O
180O0O
When folded, this is
18 of the circle, or 18 of a turn, or 18 of 360°, or 14 of 180° or 12 of 90° = ________________________.The new creases formed give us measures of 45° and 180°− 45° = 135° as shown. Write 45° and 135° at the correct places on the new creases along the edge of the semicircle.
5. Continuing with another half fold as shown in Fig. 2.18, we get an angle of measure ________________________.

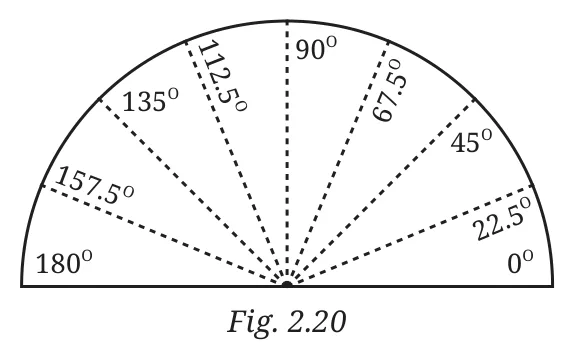

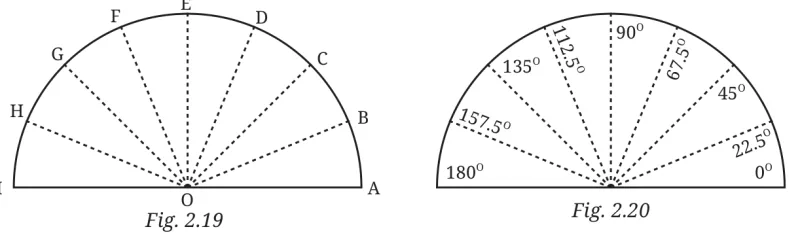

6. Unfold and mark the creases as OB, OC, ..., etc., as shown in Fig. 2.19 and Fig. 2.20.
DEF
112.5O
90O
67.5O
135O
45O
157.5O
22.5O
180O0O
Think!
In Fig. 2.19, we have ∠AOB = ∠BOC = ∠COD = ∠DOE = ∠EOF = ∠FOG = ∠GOH = ∠HOI=_____. Why?
Angle Bisector
At each step, we folded in halves. This process of getting half of a given angle is called bisecting the angle. The line that bisects a given angle is called the angle bisector of the angle.
Identify the angle bisectors in your handmade protractor. Try to make different angles using the concept of angle bisector through paper folding.
Figure it Out
1. Find the degree measures of the following angles using your protractor.
IJ
GK
2. Find the degree measures of different angles in your classroom using your protractor.
Teacher’s Note
It is important that students make their own protractor and use it to measure different angles before using the standard protractor so that they know the concept behind the marking of the standard protractor.
3. Find the degree measures for the angles given below. Check if your paper protractor can be used here!
cIH
4. How can you find the degree measure of the angle given below using a protractor?
5. Measure and write the degree measures for each of the following angles:
a.b.
d.c.
e.f.
6. Find the degree measures of ∠BXE, ∠CXE, ∠AXB and ∠BXC.
AXE
7. Find the degree measures of ∠PQR, ∠PQS and ∠PQT.
RS
8. Make the paper craft as per the given instructions. Then, unfold and open the paper fully. Draw lines on the creases made and measure the angles formed.
123
765
9. Measure all three angles of the triangle shown in Fig. 2.21 (a), and write the measures down near the respective angles. Now add up the three measures. What do you get? Do the same for the triangles in Fig. 2.21 (b) and (c). Try it for other triangles as well, and then make a conjecture for what happens in general! We will come back to why this happens in a later year.
BC
(a)
(b)
(c)
Mind the Mistake, Mend the Mistake! A student used a protractor to measure the angles as shown below. In each figure, identify the incorrect usage(s) of the protractor and discuss how the reading could have been made and think how it can be corrected.
∠U = 35⁰∠V = 80⁰
UV
∠X = 150⁰
90∠W = 70⁰
∠Y = 120⁰
∠Z = 85⁰
Figure it Out
Where are the angles?1. Angles in a clock:
a. The hands of a clock make different angles at different times. At 1 o’clock, the angle between the hands is 30°. Why?
567
b. What will be the angle at 2 o’clock? And at 4 o’clock? 6 o’clock?
c. Explore other angles made by the hands of a clock.
567
567
2. The angle of a door:
Is it possible to express the amount by which a door is opened using an angle? What will be the vertex of the angle and what will be the arms of the angle?
3. Vidya is enjoying her time on the swing. She notices that the greater the angle with which she starts the swinging, the greater is the speed she achieves on her swing. But where is the angle? Are you able to see any angle?
4. Here is a toy with slanting slabs attached to its sides; the greater the angles or slopes of the slabs, the faster the balls roll. Can angles be used to describe the slopes of the slabs? What are the arms of each angle? Which arm is visible and which is not?
5. Observe the images below where there is an insect and its rotated version. Can angles be used to describe the amount of rotation? How? What will be the arms of the angle and the vertex?
Hint: Observe the horizontal line touching the insects.
Teacher’s Note
It is important that students see the application of each mathematical concept in their daily lives. Teacher can organise some activities where students can appreciate the practical applications of angles in real-life situations, e.g., clocks, doors, swings, concepts of uphill and downhill, location of the sun, the giving of directions, etc.
2.10 Drawing Angles

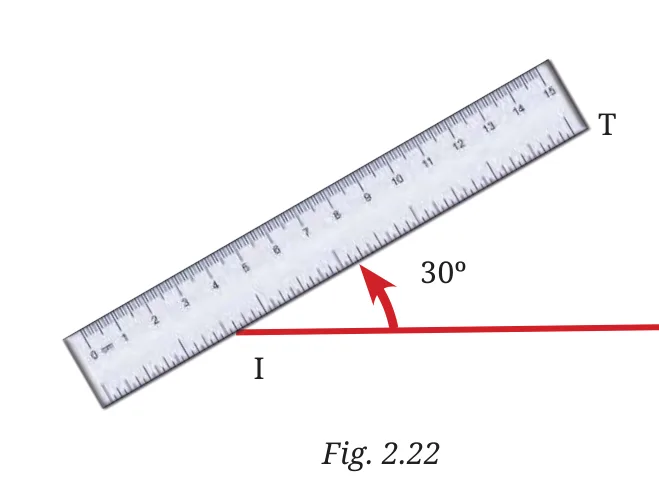

Vidya wants to draw a 30° angle and name it ∠TIN using a protractor.
In will be the vertex, IT and IN will be the arms of the angle.Keeping one arm, say IN, as the reference (base), the other arm IT should take a turn of 30°.
Step 1: We begin with the base and draw 𝐼𝑁 C
IN
Step 2: We will place the centre point of the protractor on I and align IN to the 0 line.
IN
Step 3: Now, starting from 0, count your degrees (0, 10, 30) up to 30 on the protractor. Mark point T at the label 30°.
IN
Step 4: Using a ruler join the point I and T.
∠TIN = 30° is the required angle.
30º
IN
Let’s Play a Game #1
This is an angle guessing game! Play this game with your classmates by making two teams, Team 1 and Team 2. Here are the instructions and rules for the game:
• Team 1 secretly choose an angle measure, for example, 49° and makes an angle with that measure using a protractor without Team 2 being able to see it. • Team 2 now gets to look at the angle. They have to quickly discuss and guess the number of degrees in the angle (without using a protractor!).• Team 1 now demonstrates the true measure of the angle with a protractor. • Team 2 scores the number of points that is the absolute difference in degrees between their guess and the correct measure. For example, if Team 2 guesses 39°, then they score 10 points (49°–39°).• Each team gets five turns. The winner is the team with the lowest score!
Let’s Play a Game #2
We now change the rules of the game a bit. Play this game with your classmates by again making two teams, Team 1 and Team 2. Here are the instructions and rules:
• Team 1 announces to all, an angle measure, e.g., 34°. • A player from Team 2 must draw that angle on the board without using a protractor. Other members of Team 2 can help the player by speaking words like ‘Make it bigger!’ or ‘Make it smaller!’.• A player from Team 1 measures the angle with a protractor for all to see. • Team 2 scores the number of points that is the absolute difference in degrees between Team 2’s angle size and the intended angle size. For example, if player’s angle from Team 2 is measured to be 25°, then Team 2 scores 9 points (34°–25°).• Each team gets five turns. The winner is again the team with the lowest score.
Teacher’s Note
These games are important to play to build intuition about angles and their measures. Return to this game at least once or twice on different days to build practice in estimating angles. Note that these games can also be played between pairs of students.
Figure it Out
1. In Fig. 2.23, list all the angles possible. Did you find them all? Now,
guess the measures of all the angles. Then, measure the angles with a protractor. Record all your numbers in a table. See how close your guesses are to the actual measures.
PR
D LS
2. Use a protractor to draw angles having the following degree measures:a. 110° b. 40° c. 75° d. 112° e. 134°
3. Draw an angle whose degree measure is the same as the angle given below:
Also, write down the steps you followed to draw the angle.
2.11 Types of Angles and their Measures
We have read about different types of angles in this chapter. We have seen that a straight angle is 180° and a right angle is 90°. How can other types of angles — acute and obtuse — be described in terms of their degree measures?
Acute Angle: Angles that are smaller than the right angle, i.e., less than 90° and are greater than 0°, are called acute angles.
50⁰
75⁰
40⁰P
EF
Examples of acute angles
Obtuse Angle: Angles that are greater than the right angle and less than the straight angle, i.e., greater than 90° and less than 180°, are called obtuse angles.
IX
110º
S130º
TW
Examples of obtuse angles
Have we covered all the possible measures that an angle can take? Here is another type of angle.
Reflex angle: Angles that are greater than the straight angle and less than the whole angle, i.e., greater than 180° and less than 360°, are called reflex angles.
SC
Examples of reflex angles
Figure it Out
1. In each of the below grids, join A to other grid points in the figure by a straight line to get:
a. An acute angle
b. An obtuse angle
c. A reflex angle
Mark the intended angles with curves to specify the angles. One has been done for you.
2. Use a protractor to find the measure of each angle. Then classify each angle as acute, obtuse, right, or reflex.
a. ∠PTR b. ∠PTQ c. ∠PTW d. ∠WTP
RP
Let’s Explore
ST
In this figure, ∠TER = 80
°. What is the measure of ∠BET? What is the measure of ∠SET?
80o90o
BE
Hint: Observe that ∠REB is a straight angle. Hence, the degree measure of ∠REB = 180° of which 80° is covered by ∠TER. A similar argument can be applied to find the measure of ∠SET.
Figure it Out
1. Draw angles with the following degree measures:
a. 140° b. 82° c. 195° d. 70° e. 35°
2. Estimate the size of each angle and then measure it with a protractor:
a.b.c.
d.e.f.
Classify these angles as acute, right, obtuse or reflex angles.
3. Make any figure with three acute angles, one right angle and two obtuse angles.
4. Draw the letter ‘M’ such that the angles on the sides are 40° each and the angle in the middle is 60°.
5. Draw the letter ‘Y’ such that the three angles formed are 150°, 60° and 150°.
6. The Ashoka Chakra has 24 spokes. What is the degree measure of the angle between two spokes next to each other? What is the largest acute angle formed between two spokes?
7. Puzzle: I am an acute angle. If you double my measure, you get an acute angle. If you triple my measure, you will get an acute angle again. If you quadruple (four times) my measure, you will get an acute angle yet again! But if you multiply my measure by 5, you will get an obtuse angle measure. What are the possibilities for my measure?
S u m m a r y
A point determines a location. It is denoted by a capital letter.
A line segment corresponds to the shortest distance between two
points. The line segment joining points S and T is denoted by ST.
A line is obtained when a line segment like ST is extended on both
sides indefinitely; it is denoted by ST or sometimes by a single small
letter like m.
A ray is a portion of a line starting at a point D and going in one direction
indefinitely. It is denoted by DP where P is another point on the ray.
An angle can be visualised as two rays starting from a common starting
point. Two rays OP and OM form the angle ∠POM (also called ∠MOP);
here, O is called the vertex of the angle, and the rays OP and OM are
called the arms of the angle.
The size of an angle is the amount of rotation or turn needed about the
vertex to rotate one ray of the angle onto the other ray of the angle.
The sizes of angles can be measured in degrees. One full rotation or
turn is considered as 360 degrees and denoted as 360°.
Degree measures of angles can be measured using a protractor.
Angles can be straight (180°), right (90°), acute (more than 0° and less
than 90°), obtuse (more than 90° and less than 180°), and reflex (more
than 180° and less than 360°).
CHAPTER 2 — SOLUTIONS
Section 2.4
Page No. 15
Figure it Out
Q.1.
Rihan marked a point on a piece of paper. How many lines can he draw that pass through the point?
Sheetal marked two points on a piece of paper. How many different lines can she draw that pass through both of the points?
Can you help Rihan and Sheetal find their answers?
Ans. Rihan can draw many/uncountable number of lines through the given point.
Sheetal can draw only one line through the two given points.
Q.2. Name the line segments in Fig. 2.4. Which of the five marked points are on exactly one of the line segments? Which are on two of the line segments?
Ans. LM, MP, PQ, QR
Points L and R are exactly on one line segment. Points M, P and Q are on two line segments.
Q.3. Name the rays shown in Fig. 2.5. Is T the starting point of each of these rays?
Ans. TA, TB, TN and NB
No, T is the starting point of TB, TN and TA but not of NB.
Q.4. Draw a rough figure and write labels appropriately to illustrate each of the following:
a. OP and OQ meet at O.
b. XY and PQ intersect at point M.
c. Line l contains points E and F but not point D.
d. Point P lies on AB.
Ans.
[1]
Q.5. In Fig. 2.6, name:
a. Five points b. A line c. Four rays d. Five line segments
Ans.
a) D, E, O, B and C
b) DE or DO or DB or EO or EB or OB
c) OC, OB, OE, OD (Try for other rays)
d) DE, DO, DB, EO, EB (OB; OC are also possible)
Q.6. Here is a ray OA (Fig. 2.7). It starts at O and passes through the point A. It also passes
through the point B.
a. Can you also name it as OB? Why?
b. Can we write OA as AO? Why or why not?
Ans. a) Yes, O is the starting point and point B lies on the rays that goes endlessly in the
direction of A. OA is the extension of OB.
b) No, OA is a ray with starting point O whereas AO is a ray with starting point A.
[2]
Section 2.5
Page – 19
Figure it Out
Q.1. Can you find the angles in the given pictures? Draw the rays forming any one of the angles and name the vertex of the angle.
Ans. Yes, one of the angles is ∠BDC. It’s vertex is D. One ray is DC and the other rays DB.
Try for other pictures.
Q.2. Draw and label an angle with arms ST and SR. Ans. Q.4. Name the angles marked in the given figure.
Ans. ∠RTQ, ∠RTP
Q.5. Mark any three points on your paper that are not on one line. Label them A, B, C. Draw all possible lines going through pairs of these points. How many lines do you get? Name them. How many angles can you name using A, B, C? Write them down, and mark each of them with a curve as in Fig. 2.9.
Ans. We get three lines AB, BC, CA.
Using A, B & C we can name three angles: ∠ABC or ∠CBA, ∠BCA or ∠ACB & ∠CAB or ∠BAC.
[3]
Q.6. Now mark any four points on your paper so that no three of them are on one line. Label them A, B, C, D. Draw all possible lines going through pairs of these points. How many lines do you get? Name them. How many angles can you name using A, B, C, D? Write them all down, and mark each of them with a curve as in Fig. 2.9.
Ans. We get six lines AB, BC, CD, DA, AC & BD
Using A, B, C & D we can name the following angles ∠BAC, ∠CAD, ∠BAD, ∠ADB, ∠BDC, ∠ADC, ∠DCA, ∠ACB, ∠DCB, ∠CBD, ∠DBA & ∠CBA
Section 2.6
Page 20 Is it always easy to compare two angles?
No. it is not always easy to compare two angles. For eg. 89º & 91º angles cannot be compared without measuring or overlapping. But for the given figures, comparison is easy.
Page 23
Where else do we use superimposition to compare?
A few examples are- line segments, squares and circles. Think of more.
Figure it out
Q.1. Fold a rectangular sheet of paper, then draw a line along the fold created. Name and compare the angles formed between the fold and the sides of the paper. Make different angles by folding a rectangular sheet of paper and compare the angles. Which is the largest and smallest angle you made?
[4]
Ans.
Angles Formed: ∠AEF, ∠BEF, ∠DFE, ∠CFE
Here ∠AEF & ∠CFE are larger than ∠BEF & ∠DFE
Try more cases by folding rectangular sheets in different ways.
Q.2. In each case, determine which angle is greater and why.
a. ∠AOB or ∠XOY
b. ∠AOB or ∠XOB
c. ∠XOB or ∠XOC
Discuss with your friends on how you decided which one is greater.
Ans. (a)- ∠AOB; ∠XOY is an acute angle and ∠AOB = ∠AOX + ∠XOY+∠YOB
(b)- ∠AOB
(c) – None. ∠XOB = ∠XOC
Q.3. Which angle is greater: ∠XOY or ∠AOB? Give reasons.
Ans. By looking at the figure we cannot say. Superimposition or measurement is necessary here.
Section 2.8
Page 28
Q. Is it possible to draw OC such that the two angles are equal to each other in size?
Ans. Yes, when OA and OB overlap each other on folding the Vidya’s notebook, the crease OC will divide ∠AOB in two equal sized angles.
Page 29
Q. If a straight angle is formed by half of a full turn, how much of a full turn will form a right angle?
Ans. 1
4 of a full turn.
[5]
Section 2.8
Page No. 29
Figure it Out
Q.4. Get a slanting crease on the paper. Now, try to get another crease that is perpendicular to the slanting crease.
a. How many right angles do you have now? Justify why the angles are exact right angles.
b. Describe how you folded the paper so that any other person who doesn’t know the process can simply follow your description to get the right angle.
Ans. a. Four right angle. Each angle is ¼ the of the complete angle.
b. Explore different ways of doing it.
Page 31
Figure it Out
Q.2. Make a few acute angles and a few obtuse angles. Draw them in different orientations.
Ans. Acute angle
Obtuse angle
Q.3. Do you know what the words acute and obtuse mean? Acute means sharp and obtuse means blunt. Why do you think these words have been chosen?
Ans. In acute angles the opening of the edges is lesser than the obtuse angle which have larger openings.
Q.4. Find out the number of acute angles in each of the figures below. What will be the next figure and how many acute angles will it have? Do you notice any pattern in the numbers?
Ans. (i) three
(ii) Twelve (iii) Twenty-one The next figure will have thirty acute angles. Yes, the pattern is 3 × 0 + 1, 3 × 1 + 1, 3 × 2 + 1, 3 × 3 + 1,… The number 0,1,2,3,4,….. are number of inner triangles.
[6]
Section 2.9
Page No. 35
Figure it out
Q.1. Write the measures of the following angles:
a. ∠ KAL
b. ∠WAL
c. ∠TAK
Ans. a. ∠KAL = 30° Yes, it is possible to count the number of units in 5s or 10s.
b. ∠WAL = 50°
c. ∠TAK = 120°
Page No. 36
Q. Name the different angles in the figure and write their measures.
Ans. ∠POQ = 35°
∠POR = 95°
∠POS = 125°
∠POT = 160°
∠QOR = 60°
∠QOS = 90°
∠QOT = 125°
∠QOU = 145°
∠ROS = 30°
∠ROT = 65°
∠ROU = 85°
∠SOT = 35°
∠SOU = 55°
∠TOU = 20°
[7]
Page No. 40
Think!
Q. In Fig. 2.20, we have ∠AOB = ∠BOC = ∠COD = ∠DOE = ∠EOF = ∠FOG =
∠GOH = ∠HOI=_____. Why?
Ans. Each of the angles = 22.5º
As the straight angle of 180º is divided into eight equal parts so each of the right angles
will be of measure = 180º
8 = 22.5º
Figure it Out
Q.1. Find the degree measures of the following angles using your protractor.
Ans.
∠IHJ = ∠JHI = 47º
∠GHK = ∠IHJ = 23º
∠IHJ = ∠JHI = 108º
Q.3. Find the degree measures for the angles given below. Check if your paper protractor can be used here!
Ans.
∠IHJ = 42º, ∠IHJ = 116º
No, paper protractor cannot work here.
Q.4. How can you find the degree measure of the angle given below using a protractor?
Ans. Measure of marked angle = 360º – Measure of unmarked angle
= 360º - 100º = 260º Try other ways to find the marked angle
Q.5. Measure and write the degree measures for each of the following angles:
Ans.
a. 80º b. 120º c. 60º d. 130º e. 130º f. 60º
Q.6. Find the degree measures of ∠BXE, ∠CXE, ∠AXB and ∠BXC.
Ans. ∠BXE = 115º, ∠CXE = 85º, ∠AXB = 65º ∠BXC = 30º
Q.7. Find the degree measures of ∠PQR, ∠PQS and ∠PQT.
Ans. ∠PQR =45º ∠PQS=100º ∠PQT=150º.
[8]
Page 45
Figure it Out
Q.1. Angles in a clock:
a. The hands of a clock make different angles at different times. At 1 o’clock, the angle between the hands is 30°. Why?
b. What will be the angle at 2 o’clock? And at 4 o’clock? 6 o’clock?
c. Explore other angles made by the hands of a clock.
Ans. (a) The angles at the centre of the clock is 360º which is divided into 12 equal parts. So. The angle between two successive numbers = 360
12 = 30º
(b) At 2’O clock = 60º = 2×30
At 4’O clock = 120º = 4×30 At 6’O clock = 180º = 6×30 (c) At 3’O clock = 90º
At 9’O clock = 270º Try for other angles made by the hands of a clock.
Q.2. The angle of a door:
Is it possible to express the amount by which a door is opened using an angle? What will be the vertex of the angle and what will be the arms of the angle?
Ans. Yes, the vertex of the angle will be the point where door meets the wall. The arms will be the edges of the door and the wall.
Q.3. Vidya is enjoying her time on the swing. She notices that the greater the angle with which she starts the swinging, the greater is the speed she achieves on her swing. But where is the angle? Are you able to see any angle?
Ans. Student may not see the angle, but when the starting arm is fixed as the position where she starts swinging. The angle can be thought to be between positions where she starts the swinging (the initial position) and the position where she attains the greatest position of the swing at any one side.
Q.4. Here is a toy with slanting slabs attached to its sides; the greater the angles or slopes of the slabs, the faster the balls roll. Can angles be used to describe the slopes of the slabs? What are the arms of each angle? Which arm is visible and which is not?
Ans. Yes, angles can be used directly to describe slopes of the slab, larger the angle, greater the slope of the slab. For each angle, one arm is a side and one arm is the slope. The vertical arm is not visible, whereas the other arm is visible. Here in this toy, edges of the slabs are the arms of the angles. Top horizontal ray is not visible, other arms in the form of edges of the slab are visible. Teacher should motivate students to get other possible answers.
[9]
Page 49
Section 2.10
Figure it Out
Q.1. In Fig. 2.23, list all the angles possible. Did you find them all? Now, guess the measures of all the angles. Then, measure the angles with a protractor. Record all your numbers in a table. See how close your guesses are to the actual measures.
Ans. ∠CAP, ∠ACD, ∠APL, ∠DLP, ∠RPL, ∠SLP, ∠PRS, ∠LSR, ∠BRS, ∠CLP Try more!
Page 52
Section 2.11
Figure it Out
Q.2. Use a protractor to find the measure of each angle. Then classify each angle as acute, obtuse, right or reflex.
Ans.
a. ∠PTR = 30º (Acute angle) b. ∠PTQ = 60º (Acute angle) c. ∠PTW = 102º (Obtuse angle) d. ∠WTP = 258º (Reflex angle)
Let’s Explore:
Q. In this figure, ∠TER = 80°. What is the measure of ∠BET? What is the measure of ∠SET?
Ans. ∠BET = 100º, ∠SET = 10º
Page – 53
Figure it out
Q.3. Make any figure with three acute angles, one right angle and two obtuse angles.
Ans. ∠A, ∠B & ∠C are three acute angles ∠D, ∠F are obtuse angle ∠E is right angle
[10]
Q.4. Draw the letter ‘M’ such that the angles on the sides are 40° each and the angle in the middle is 60°.
Ans.
Q.5. Draw the letter ‘Y’ such that the three angles formed are 150°, 60° and 150°.
Ans.
Q.6. The Ashoka Chakra has 24 spokes. What is the degree measure of the angle between two spokes
next to each other? What is the largest acute angle formed between two spokes?
Ans. The angle between two spokes next to each other is 15º. Largest acute angle between spokes is 75º.
Q.7. Puzzle: I am an acute angle. If you double my measure, you get an acute angle. If you triple my measure, you will get an acute angle again. If you quadruple (four times) my measure, you will get an acute angle yet again! But if you multiply my measure by 5, you will get an obtuse angle measure. What are the possibilities for my measure?
Ans. The acute angle can be 19º, 20º, 21º & 22º.
[11]
