NCERT Solutions Ganita Prakash (Part 2) Chapter 5 Figure it Out (3)

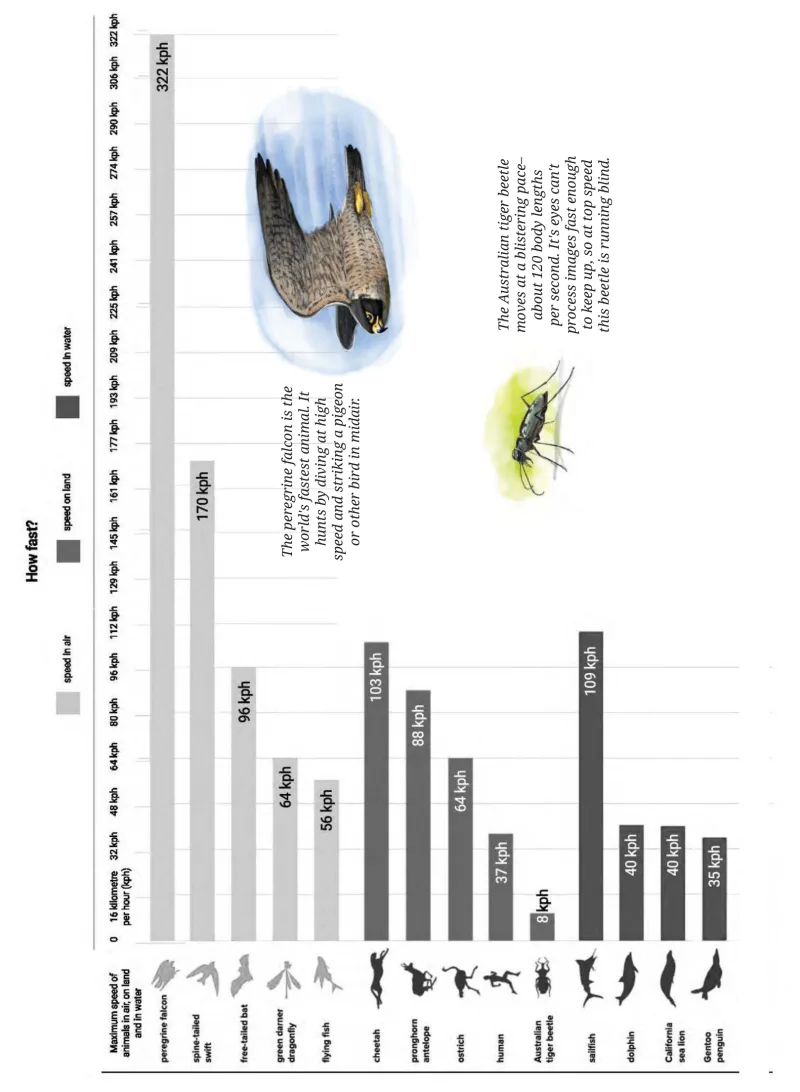

The following infographic shows the speeds of a few animals in air, on land, and in water. Can we call this graph a bar graph? (a) What is the scale used in this graph? (b) What did you find interesting in this infographic? What do you want to explore further? (c) Identify a pair of creatures where one’s speed is about twice that of the other. (d) Can we say that a sailfish is about 4 times faster than a humpback whale? Can we say that a sailfish is the fastest aquatic animal in the world?

Preyashi asked her students ‘If you were to get a super power to become aquatic (water-borne), aerial (air-borne), or spaceborne which one would you choose?’. The responses are shown below. Some chose none. Draw a double-bar graph comparing how both grades chose each option. Choose an appropriate scale.

The temperature variation over two days in different months in Jodhpur, Rajasthan, is given below. Draw a double-bar graph. Use the scale 1 unit = 4°C. Can you guess which two months these days might belong to?

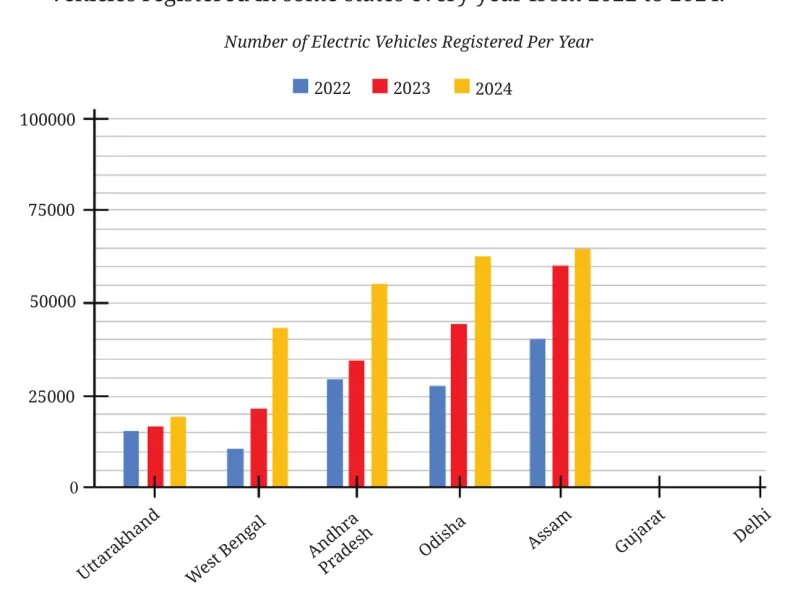

The following clustered-bar graph shows the number of electric vehicles registered in some states every year from 2022 to 2024. (a) The data (rounded-off to thousands) for the states of Gujarat and Delhi are given in the table below. Mark the corresponding bars on the bar graph. (It is enough if you place the top of the bars between the two appropriate vertical guidelines.) (b) Notice how the graph is organised, what scale is used, and what patterns the data shows. (c) How would you describe the change for various states between 2022 and 2024? (d) Approximately how many more registrations did Assam get in 2023 compared to 2022? (e) How many times more did the registrations in West Bengal increase from 2022 to 2024? (f) Is this statement correct — ‘There were very few new registrations in Uttarakhand in 2023 and 2024, as the increase in the bar lengths is minimal’?
