Motion
Think It Over
In Chapter 4, you learnt to describe the motion of an object in terms of its position, velocity and acceleration. But you did not consider what causes motion. Is there an underlying cause for a change in position and velocity of an object? What is the nature of this cause? Do all motions require a cause? In this chapter, we will investigate what causes changes in the motion of objects. We will also discuss Newton’s three laws of motion and learn how to apply them.
• Why does a canoe move forward when the canoeist pushes water backwards with their paddle and why does it move faster when they push harder? • Suppose the same canoeist uses the same paddle force in two different canoes, one empty and one carrying another passenger. In which case will the canoe move faster?
6.1 The Concept of Force
You may recall learning earlier that a force can make an object move from rest, change the speed and direction of motion of a moving object, and can even change the shape of an object. For example, a ball at rest starts moving when you apply a force, a force applied by a cricket bat on a cricket ball changes its direction, and a lemon can be squeezed by the force applied by your fingers (Fig. 6.1).
Grade 8CuriosityChapter 5
(a) Kicking a ball
(b) Striking a ball
(c) Squeezing a lemon
Fig. 6.1: Applying force on different objects
While learning about force earlier, did you notice that whenever any type of force acting on an object was described, its direction was also specified? For example, the phrases used were, force of friction acting on an object in a direction opposite to the direction of its motion; like poles of a magnet repelling each other or unlike poles attracting each other due to the magnetic force; like charges repelling or unlike charges attracting each other due to the electrostatic force; the Earth attracting objects towards itself due to the gravitational force; buoyant force exerted by liquid in an upward direction on an object placed in it, and so on. Force is a physical quantity for which we need to specify direction along with its magnitude and unit, just like for the physical quantities — position, displacement, velocity and acceleration of an object which were introduced in Chapter 4. The SI unit of force is the newton (written with a small ‘n’) and its symbol is N. The magnitude of the force expresses its strength.
Grade 6CuriosityChapter 4
Grade 8CuriosityChapter 5
Note
If either the magnitude or direction, or the both, of a force applied on an object changes, the effect of the force also changes.
6.1.1 Measuring the magnitude of a force

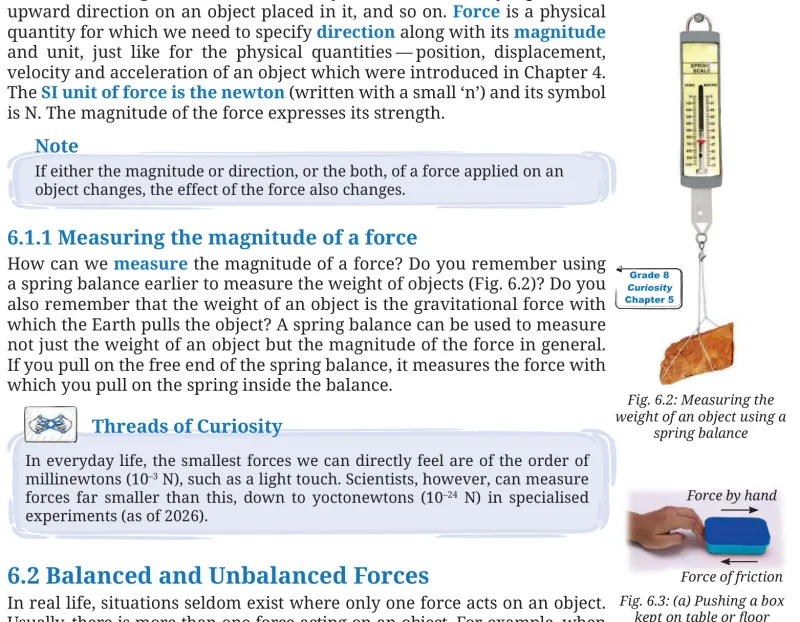

How can we measure the magnitude of a force? Do you remember using a spring balance earlier to measure the weight of objects (Fig. 6.2)? Do you also remember that the weight of an object is the gravitational force with which the Earth pulls the object? A spring balance can be used to measure not just the weight of an object but the magnitude of the force in general. If you pull on the free end of the spring balance, it measures the force with which you pull on the spring inside the balance.
Grade 8CuriosityChapter 5
Fig. 6.2: Measuring the weight of an object using a
Threads of Curiosity
spring balance
In everyday life, the smallest forces we can directly feel are of the order of millinewtons (10–3 N), such as a light touch. Scientists, however, can measure forces far smaller than this, down to yoctonewtons (10–24 N) in specialised experiments (as of 2026).
Force by hand
6.2 Balanced and Unbalanced Forces
In real life, situations seldom exist where only one force acts on an object. Usually, there is more than one force acting on an object. For example, when you are pushing a box placed on a surface then, apart from the force with which you are pushing it, the force of friction is also acting on the box in the direction opposite to that of the motion (Fig. 6.3a).
Force of friction
kept on table or floor
Buoyant force
Or, take the example of a ball floating on water (Fig. 6.3b). Two forces are acting upon it — gravitational force by the Earth acting downwards and buoyant force applied by the liquid acting upwards. In such cases, what is the effect of forces when more than one force is acting on an object at rest or in motion?
Gravitational
force
Have you ever played a game of tug of war where two teams pull at a rope in opposite directions? If both the teams pull the rope with equal
Fig. 6.3: (b) A ball floating on water
force, the rope does not move (Fig. 6.4a). Such two forces, which are equal in magnitude but opposite in direction are called balanced forces. However, if one team pulls harder, i.e., it applies a force of larger magnitude, the forces are no longer balanced and the rope moves in the direction of the larger force (Fig. 6.4b). The rope does not move if the forces applied on it are balanced but moves if the forces are unbalanced.
(a)
Net force
(b)
Fig. 6.4: Two forces applied in opposite direction of (a) equal
magnitudes, (b) unequal magnitudes
If the forces applied on an object are not balanced, a non-zero net force acts on the object. When two forces are opposite in direction but unequal in magnitude (Fig. 6.4b), the magnitude of net force is equal to the difference between the magnitudes of two forces and the direction is along the force of the larger magnitude.
Net force
Now, think of a situation where two people are applying forces in the same direction on a stalled car to make it move (Fig. 6.5). In this case, the magnitude of the net force applied by them on the car is the sum of the magnitudes of two forces. The direction of the net force is in the same direction as the two individual forces.Example 6.1: Two forces of 10 N and 6 N are acting on a block lying on the table as shown in Fig. 6.6. What is the magnitude and the direction of the net force acting on the block in each case?
Fig. 6.5: Two forces applied in the same direction
10 N
10 N6 N
10 N6 N
6 N
(b)
(a)
(c)
Fig. 6.6: Two forces acting on a block in three different manner
Answer: (a) Net force = 10 N + 6 N = 16 N, acting towards the right side.(b) Net force = 10 N – 6 N = 4 N, acting towards the right side.(c) Net force = 10 N – 6 N = 4 N, acting towards the left side.
Ready to Go Beyond
There are situations in which forces do not act parallel or opposite to each other but act at an angle to each other. You will learn in higher grades how to calculate the net force in such cases. Also, there are situations where equal and opposite forces are applied to the two ends of an extended object which make the object rotate (Fig. 6.7). For example, applying equal and opposite forces to a handlebar or a tap makes it turn. You will also learn about this in higher grades.
NextLevel
Fig. 6.7: Equal and opposite forces on an extended object
Up
96
Exploration|Grade 9
Pause and Ponder

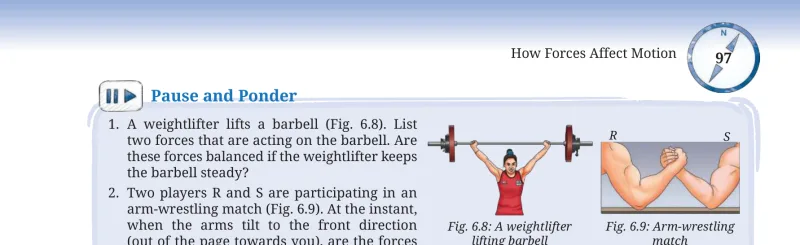

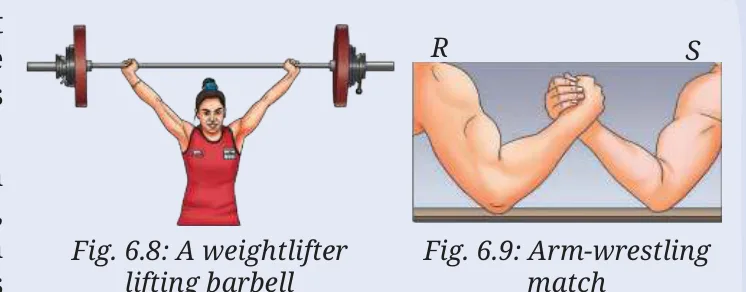

1. A weightlifter lifts a barbell (Fig. 6.8). List
RS
two forces that are acting on the barbell. Are these forces balanced if the weightlifter keeps the barbell steady? 2. Two players R and S are participating in an
arm-wrestling match (Fig. 6.9). At the instant, when the arms tilt to the front direction (out of the page towards you), are the forces exerted by the players balanced? If not, which player exerted the larger force?
lifting barbell
match
6.3 The Force of Friction: Often Overlooked but Always Present
You have learnt about the force of friction in an earlier grade but now let us learn more about it. Suppose an object is kept at rest on the floor and you apply a force on it in the forward direction (Fig. 6.10). Will the force applied by you make the object move? Many a times, you might have experienced that on applying a force on an object, it did not move and you had to apply a larger force to move it. Why is it so?
Net force
Grade 8CuriosityChapter 5
It is due to the force of friction arising between the bottom surface of the box and the floor acting in a direction opposite to the direction of the force applied by you. The box will start moving when the force applied by you is of larger magnitude than the force of friction, so that a net force acts on the box in the direction of its motion.
Note
Multiple forces may act on an object, but its motion depends only on the net force.
Ready to Go Beyond
For an object being pushed, apart from the applied force and the force of friction, some other forces may also be acting on it (Fig. 6.11). One of these is the gravitational force (weight) and the other is the force exerted by the surface on which it is placed called the normal force. The weight acts in the downwards direction, whereas the normal force acts in the upward direction perpendicular to the surface. However, the two forces are balanced.
Normal force
Applied
force
Force of friction
Gravitational
force
Air around the object also exerts a force of friction on the box when the box moves through the air, but in many cases its magnitude is so small that it can be neglected.
Fig. 6.11: Forces acting on an object
For the situation shown in Fig. 6.10, once the box starts moving and you stop applying the force on it, the box slows down and comes to a stop. You must have experienced this in many cases around you. You stop pedalling a bicycle and after some time it comes to rest after travelling some distance. You stop pushing a ball and it also comes to rest after travelling some distance. Does it mean that you need to continuously apply a force to keep
What if ...
it moving? On a moving object, we have to continuously apply a force to counter the force of friction. Otherwise, the force of friction acting against the direction of motion brings the object to rest.
the force of friction disappears in the world? How will the motion of objects be impacted?
Do you remember doing an activity in an earlier grade where you found that the force of friction depends upon the nature of the surfaces in contact? Let us carry out a similar activity here.
Grade 8CuriosityChapter 5
Activity 6.1: Let us investigate
1. Collect four coins of ` 10, one large strong rubber band and an adhesive
tape. Locate horizontal surfaces of different materials, such as wooden table top, cemented floor, laminated table top, and polished marble or tiled floor (you may also choose other surfaces). Check that the surfaces are level.2. Stack the four coins on top of each other and secure them together
with an adhesive tape around the sides.3. Hold the rubber band slightly stretched between your forefinger and
thumb on the wooden table top (Fig. 6.12a). Mark points A and B at its ends as shown in Fig. 6.12b. Make another mark C up to which you will stretch the rubber band.
A A BB
(a)(b)(c)
Fig. 6.12: (a) Rubber band slightly stretched between your forefinger and thumb, (b) marks A, B, C
on the surface, and (c) rubber band stretched back to point C with stack of 4 coins
4. Holding the ends of the rubber band at A and B, place the stack of coins
near the middle of A and B. Now, using a finger of your other hand, push back the stack of coins till the rubber band is pulled back to the mark C (Fig. 6.12c). Then, release the stack of coins and observe its motion. Do you find that after losing contact with the rubber band, the velocity of the stack of coins decreases gradually and it comes to rest after travelling some distance? Measure the distance travelled from C and record it. Repeat this step twice. 5. Repeat steps 3 and 4 for laminated table top while ensuring that the
points A, B and C are marked at the same distances as earlier. Does the stack of coins travel a larger distance than it did on the wooden table top before coming to rest? Does its velocity decrease more slowly now?6. Next, repeat step 5 on a horizontal polished marble or tile floor.
Does the stack of coins travel an even larger distance and its velocity decrease even more slowly? What conclusion do you draw from your observations?Before you release the stack of coins, it is stationary. It means that the forces acting upon it are balanced. Upon release, the force applied by you
98
Exploration|Grade 9
vanishes and the force applied by the stretched rubber band in the forward direction on the stack of coins sets it moving. The coins start moving means that the force applied by the rubber band is larger than the force of friction and a net force acts on stack of coins in the forward direction (Fig. 6.13a). Due to the net force, the velocity of stack of coins changes from zero to a certain value, i.e., the net force provides an acceleration in the forward direction.
Force of friction
Force due to rubber band
(a)
BForce of friction
However, the moment the stack of coins loses contact with the rubber band, the force due to the rubber band is no longer acting upon it. But the force of friction continues to act upon the stack of coins in the direction opposite to their motion (Fig. 6.13b). It gradually decreases its velocity and finally brings it to rest.
(b)
Fig. 6.13: Force acting on the stack of
coins (a) due to the stretched rubber band and friction upon release of rubber
band, and (b) only due to friction
Even though the rubber band is stretched by the same amount in each case, the distance travelled by the stack of coins on different surfaces changes. This indicates that the force of friction on these surfaces is different. But how can you check if the force of friction is indeed different for different surfaces?
Activity 6.2: Let us measure
1. Take a spring balance and a wooden block.2. Place the spring balance in a horizontal position on one of the surfaces
used in Activity 6.1 and check that its scale reading is zero. Attach the wooden block to the hook of the spring balance as shown in Fig. 6.14.
Fig. 6.14: A block being pulled by a spring balance
3. Pull the spring balance with gradually increasing force and note down
the reading on it when the block just starts moving. What does this reading indicate? The forces acting on the block are the force applied by the spring on it and the force of friction. If the velocity of the block is neither increasing nor decreasing, what can you say about the net force acting on the block? Does the reading of the spring balance indicate the magnitude of the force of friction acting on the wooden block?4. Now repeat step 3 on the remaining three surfaces from Activity 6.1. 5. Compare the readings of the spring balance for all surfaces. Are the
readings different? Is the reading smallest for the surface on which the stack of coins travelled the largest distance? Is the reading largest for which the distance travelled was the smallest?The reading of the spring balance gives an approximate measure of the force of friction acting between the surface of the block and the surface
on which it moves. A smaller reading indicates a smaller force of friction, while a larger reading indicates a larger force of friction. From Activities 6.1 and 6.2, we conclude that when the force of friction is smaller, the velocity of the stack of coins decreases more slowly, and it travels a larger distance before coming to rest.
Think as a Scientist
Now, conduct a thought experiment. We do a thought experiment when the conditions required for the experiment are difÏcult to recreate in the real world. Suppose, you find an object and a horizontal floor having such smooth surfaces that the force of friction between them is zero. Imagine, what will happen if you repeat steps 3 and 4 of Activity 6.1 with such an object and a horizontal floor? Will the velocity of the object decrease? Will the object ever come to rest or continue moving forever?
Meet a Scientist
Meet a Scientist
In ancient times, it was well recognised that a force was required to move a stationary object or to stop a moving object. But was a force required to keep an object moving with a constant velocity? For ages, it was mistakenly thought that a force was indeed required to maintain an object in such a motion. It was only in the 17th century that Galileo Galilei argued through a series of thought experiments that if a body moves along a horizontal plane and all impediments to its motion are removed, it will continue to move indefinitely.
Isaac Newton used the word ‘inertia’ to describe the tendency of objects to resist change in their state of rest or uniform motion, and used this idea to frame his first law of motion. Along with this, Newton presented two more laws of motion in 1687. The formulation of these three laws of motion was a defining moment in the history of science. The unit of force is named after Newton. Remember that when a unit is named after a person, its full form begins with the small case (newton and not Newton) while its symbol is capitalised (N and not n).
6.4 Newton’s First Law of Motion
Newton’s first law of motion can be stated as:An object at rest remains at rest, and an object in motion continues to move with a constant velocity, unless a net force acts upon the object.
In other words, we can say that if the net force acting on an object is zero, the body cannot begin to move or change its velocity. In such a case, its acceleration is zero.
Note
An object at rest means that it has zero velocity. Remember that constant velocity means that there is no change in the magnitude or the direction of velocity. If this constant velocity is non-zero, the motion is in a straight line in the same direction and the magnitude of velocity remains the same.
100
Exploration|Grade 9
Example 6.2: A person is exerting a force on a moving box in the forward direction which is equal to the force of friction acting between the bottom surface of the box and the floor. Will the box continue moving or will it come to rest after some time? Answer: The force of friction will be acting on the box in the backward direction. The two forces acting on the box are equal and opposite, and thus, they balance each other. The net force acting on the box is zero and as per the Newton’s first law of motion, the box will continue moving with constant velocity. Example 6.3: Draw (i) position-time, and (ii) velocity-time graphs for an object on which no net force is acting.Answer: When no net force is acting on an object, there are two possibilities — either the object is at rest or the object is moving with a constant velocity. If the object is at rest, its position will not change with time and its position-time graph is as shown in Fig. 6.15a. Its velocity will remain zero and its velocity-time graph is shown in Fig. 6.15b. If the object is moving with constant velocity and no net force is acting upon it, it will continue moving with the same velocity and the velocity-time graph is shown in Fig. 6.16b. The position-time graph will be a straight line as shown in Fig. 6.16a.
Note
If the force of friction is zero, a net force will have to be applied to an object at rest to set it moving. But once the object is moving, no further force is required to keep it moving with a constant velocity. However, to change the velocity (magnitude or direction), or to stop a moving object, a force will have to be applied.
Velocity
Position
Position
Velocity
Time0Time0
Time0
Time
(a)(b)
(a)(b)
Fig. 6.15: When the object is at rest, its
Fig. 6.16: When the object is moving with
(a) position-time graph,
a constant velocity, its (a) position-time
(b) velocity-time graph
graph, (b) velocity-time graph
Pause and Ponder
3. An object is moving with a constant velocity. Is there a net force acting upon it?4. Suppose, no net force is acting on an object. Which of the following situations
are possible?(i) Object remains at rest if at rest. (ii) Object keeps moving with a constant velocity if already moving. (iii) Object is moving with a constant acceleration.5. In the real world, it is difÏcult to find a situation where no forces are acting on an
object. But by applying additional forces, a condition can be achieved where the net force on the object is zero. Explain with the help of an example.
Newton’s first law of motion describes the motion of objects in the absence of a net force. It is natural to ask what happens to the motion of an object when there is a net force acting upon it. Newton’s second law of motion addresses this issue.
6.5 Newton’s Second Law of Motion
You know that a force can set an object in motion, bring it to rest, or change its velocity. A change in velocity means that the object is accelerating. Thus, a force produces acceleration. But what is the relationship between the net force acting on an object and its acceleration?
Think as a Scientist
From our everyday experiences, you know that if a ball is pushed gently, it moves slowly starting from rest, i.e., the acceleration due to the force applied by you is small. On the other hand, a strong push results in the ball starting to move fast, i.e., a larger acceleration due to the force applied by you. So based on your experiences, you can make a hypothesis — for the same object, a larger force results in larger acceleration (or a smaller force results in smaller acceleration). Now, how can you test your hypothesis? You will have to think of an activity where you can apply forces of different magnitudes on the same object and the same surface to find the resultant acceleration. How can you apply forces of different magnitudes? You have learnt in earlier grade about gravitational force with which the Earth pulls an object towards itself. It is called the weight of an object and is different for different objects. Hence, you can use weights of different magnitudes to apply forces of different magnitudes.
Grade 8CuriosityChapter 5
Activity 6.3: Let us experiment (Demonstration activity)
Pencils
This activity is recommended to be performed as a classroom group activity facilitated by the teacher.
Wheels
Paper
Cardboard
1. Take four ball bearing wheels, two pencils,
cup
box
an empty cardboard box (to make a cart), a paper cup, a piece of pipe (to use as a pulley), a length of thread, some coins or other objects (to place in cup) and a weighing scale to measure mass.
(a)
ThreadPulley
Cart
2. Insert two pencils through the sides of the box
near the bottom, to function as axles and attach a wheel to each of their free ends as shown in Fig. 6.17a (if the wheels are loose, wrap some adhesive tape at the pencil ends to fit the wheels tightly). Attach a thread to the front end of the box with which you can pull the cart.
Paper
cup
(b)
Fig. 6.17: (a) A cart, (b) a cart and
pulley system
3. Draw a line at one end of the table, which will mark the starting point
for the cart. Put the thread over a small pipe attached at the other end of the table (Fig. 6.17b). To this thread attach a cup in which you can put some objects. As you let the system go, the cup will move down due to the gravitational force by the Earth on it, and the thread will pull the cart with a constant force. 4. Measure the mass of the cup along with any other objects put inside it
with the weighing scale.5. Start recording a video of the cart in slow motion. Release the cart from
the start line, and record the video until it reaches the pipe at the other end of the table.
102
Exploration|Grade 9
6. Read the time when you released the cart and when it reached the end
of the table by seeing the slow-motion video, and record the differenceas time T1.7. Now double the mass of the cup with the objects inside it, and repeat
steps 5 and 6 to record the time difference T2.Using the values of the time measured, let us do some analysis. For both cases, the cart starts with zero velocity u = 0 and travels the same distance s. If a1 and a2 are the accelerations in the two cases respectively, using kinematic equation, we obtain
sa T=21112and
22212sa T=
Equating the two equations, we obtain
aTaT=
212
221
Substituting the values of T1 and T2 , you find that when you increased the force for the same mass of the cart, the acceleration increased.
You may conclude that the acceleration of an object of fixed mass increases as the net force applied on it increases.
Think as a Scientist
Apart from force, does acceleration depends on any other factor? From everyday experiences, you know that with the same magnitude of force, it is easier to set lighter objects in motion than heavier ones. This leads to a second hypothesis, that for the same force, a smaller mass has a larger acceleration (or a larger mass has a smaller acceleration). Now how can you test your second hypothesis?
Activity 6.4: Let us experiment (Demonstration activity)This activity is recommended to be performed as a classroom group activity facilitated by the teacher.
1. Repeat Activity 6.3 with a variation. Keep the mass of the cup and objects
inside it constant. Double the mass of the cart by adding more objects in it.2. Measure the mass of the cart along with the objects inside it with a
weighing scale.3. Carry out steps 5 and 6 of Activity 6.3.
Using the values of time measured, find the ratio of acceleration forthese two cases. Do you find that for the same force, when you increased the mass of the cart, the acceleration decreased? This means that for a given magnitude of a force, the acceleration produced is inversely related to the mass of the object.
The relation between force, mass and acceleration is expressed in the Newton’s second law, one of the most fundamental ideas in all of science. Newton’s second law of motion can be stated as:
When a net force acts on an object, the object accelerates in the direction of the net force. The magnitude of the acceleration is proportional to the magnitude of the net force and is inversely proportional to the mass of the object.
Mathematically it can be expressed as
= Fam (6.1)
or F = ma(6.2)where a denotes acceleration, F denotes force, and m denotes mass of the object. The direction of acceleration is the same as the direction of net force.
Threads of Curiosity
You know that the SI units of mass and acceleration are kg and m s–2 respectively. If m = 1 kg , a = 1 m s–2, then using Eq. (6.2) we obtain
How much does a force of 1 N feel? If you hold a 100 g mass in your palm, the upward force your palm applies on the mass is around 1 N.
F = (1 kg) × (1 m s–2) = 1 kg m s–2 = 1 NOne newton of force is defined as the force that produces an acceleration of 1 m s–2 on an object of mass 1 kg.
You know that under the influence of gravitational force, an object falls towards the Earth. During this motion, the acceleration involved is called the acceleration due to the gravitational force by the Earth and is denoted by g . Its unit is the same as that of acceleration, m s–2. Using Eq. (6.2), the gravitational force acting on an object of mass m is
Note
The acceleration due to gravitational force by the Earth ( g ) does not depend on the mass of the object.
F = mg(6.3)The value of acceleration due to gravitational force by the Earth is g = 9.8 m s–2. It can be taken to be nearly constant near the surface of the Earth. For quick estimations, one can also take g = 10 m s–2.
Threads of Curiosity
As per Eq. (6.1), in Activity 6.3, doubling the force on the cart should have doubled the acceleration you measured. But in reality, you may have found the increase to be little less than a factor of two.Similarly in Activity 6.4, when you doubled the mass of the cart, the acceleration should have been halved but you might have found a slightly different value. Apart from measurement errors, the friction between the cart’s wheels and the surface can lead to such differences.
Ready to Go Beyond
The more complete form of Newton’s second law is expressed in terms of momentum. The momentum of an object is defined as the product of its mass and velocity. The direction of the momentum is same as that of the velocity. Newton’s second law states that the rate of change of momentum of an object is proportional to the net force and takes place in the direction in which the net force acts. Newton’s second law expressed in this form is applicable to situations even where the mass of the object is not constant.
Newton’s second law of motion is considered to be a fundamental law of nature. Many events around us can be explained on the basis of Newton’s second law of motion.
In a game of cricket, you might have noticed that while catching a fast-moving ball, the fielder gradually pulls their hands backwards with the moving ball just after catching it (Fig. 6.18). In doing so, the time duration is increased during which the high velocity of the ball reduces to zero. This reduces the magnitude of the acceleration of the
cricket ball
104
Exploration|Grade 9
ball as it slows down, thus requiring a smaller force to be applied by the fielder to stop the ball. Applying a smaller force to the moving ball also minimises injury to the fielder.
Bridging Science and Society

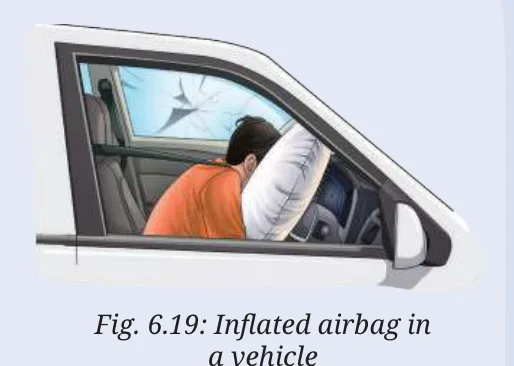

For a similar reason, airbags are provided in vehicles (Fig. 6.19). In the event of a collision and the vehicle coming to an abrupt halt, the airbag inflates quickly into a soft compressible cushion. Instead of directly hitting the hard steering wheel or dashboard, the passenger’s head and chest push into the bag, and the time over which the hitting occurs increases. Smaller acceleration means a reduced force exerted on the person, thereby lowering the risk of serious injuries, particularly when combined with the seat belt usage.
a vehicle
Have you ever attempted cracking a fresh coconut in one go? It is brought down at a very high velocity to hit a hard surface (Fig. 6.20). When the coconut hits the ground, it stops in a very short time. To change its velocity so quickly, the ground must exert a very large force on it. This large force breaks the shell.
coconut in one go
Example 6.4: A weight lifter is holding a barbell with mass of 10 kg fixed on each side of the bar (Fig. 6.8). The mass of the bar itself is 10 kg. How much force is she applying to keep the barbell steady?Answer: The total mass of the barbell is 30 kg. The gravitational force due to the Earth, acting on the barbell in the downward direction is (using Eq. 6.3),
F = mg = 30 kg × 9.8 m s–2 = 294 NTo keep the barbell steady, the weightlifter has to apply an equal force in the opposite direction. So, she is applying 294 N in the upward direction.Example 6.5: A student is trying to push a stationary block of 25 kg on a horizontal floor. The maximum force of friction opposing this motion is 50 N. Determine the displacement of the block in 2 seconds if Rahul pushes it with a constant force of (i) 50 N and (ii) 55 N in the forward direction.Answer: (i) The force applied by the student is equal to the opposing force of
friction. Thus, the two forces are balanced and the net force acting on the block is zero. So, the block will remain stationary. (ii) The net force on the block is 55 N – 50 N = 5 N.
The mass of the block is 25 kg. Using the Newton’s second law of motion, the acceleration of the block is
25 N5 kg m s0.2 m s25 kg25 kgFam
−−====
Using the kinematic equation, the displacement of the block in
2 seconds is ()−−=+=×+××=
2212110 m s2 s0 2 m s2 s0 4 m22..sutat
in the forward direction.
Example 6.6: A sports car of mass 1500 kg is moving towards the east and its velocity-time graph is shown in Fig. 6.21. Calculate the force acting on the car during (i) 0 s to 5 s (ii) 5 s to 10 s (iii) 10 s to 15 s Answer:(i) During 0 s to 5 s:As the velocity-time graph is a straight line inclined to the time axis, it indicates that the sports car is moving with a constant acceleration during this time interval with u = 0 m s–1, v = 10 m s–1 and t = 5 s.

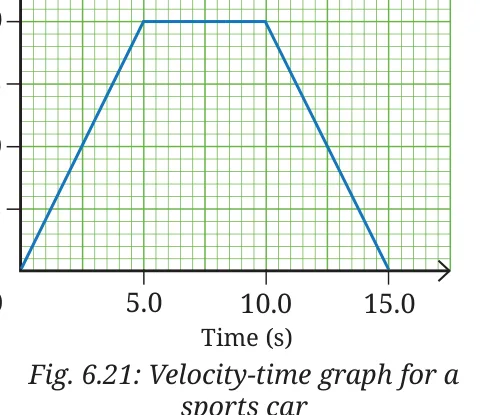

10.0
Velocity (m s–1)
7.5
5.0
2.5
Time (s)05.0
10.015.0
sports car
Using the kinematic equation v = u + at, we can find the acceleration, 10 m s–1 = 0 m s–1 + (a × 5 s)a = 2 m s–2
Now, using the Newton’s second law of the motion F = ma, we can find the force acting on the sports car as,
F = 1500 kg × 2 m s–2 = 3000 N acting towards the east.(ii) During 5 s to 10 s: As the velocity-time graph is a straight line parallel to the time axis, it indicates that the sports car is moving with a constant velocity. Hence, no force is acting on the sports car. (iii) During 10 s to 15 s: As the velocity-time graph is a straight line inclined to the time axis, it indicates that the sports car is moving with a constant acceleration in this time interval with u = 10 m s–1, v = 0 m s–1 and t = 5 s. Using the kinematic equation v = u + at , we can find the acceleration,
0 m s–1 = 10 m s–1 + (a × 5 s)a = – 2 m s–2
Now, using the Newton’s second law of the motion F = ma , we can find the force acting on the sports car as,
F = 1500 kg × (– 2 m s–2) = – 3000 NThe negative sign shows that the force is acting in a direction opposite to the direction of motion, that is towards the west.
Pause and Ponder
6. A toy car of mass 100 g is moving with a constant velocity of 0.5 m s–1.
What is the net force acting on the toy car?7. Two children of different masses are sitting on identical swings. To
impart identical initial acceleration, for which child would you require to apply a larger force? Explain why. 8. How are glass items packed for transportation using a bubble wrap or
hay protected from damage?
106
Exploration|Grade 9

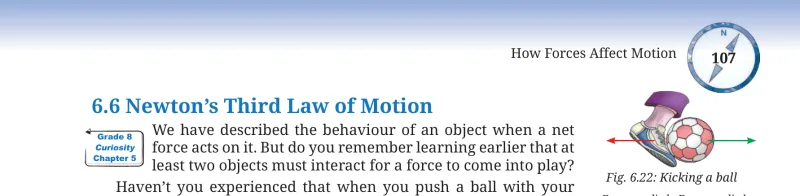

6.6 Newton’s Third Law of Motion
We have described the behaviour of an object when a net force acts on it. But do you remember learning earlier that at least two objects must interact for a force to come into play? Haven’t you experienced that when you push a ball with your foot, you feel a force applied by the ball on your foot (Fig. 6.22)? It is then natural to ask how both the objects are affected in this process. Newton’s third law addresses this issue.
Grade 8CuriosityChapter 5
Force applied
Force applied by the table on the girl
by the girl on
the table
Activity 6.5: Let us explore
1. Locate a chair with wheels and a large heavy table.2. Sit on the chair with your legs raised above the floor. Now, using
both your hands, push the table away from you, i.e., apply a force on the table in the forward direction as shown in Fig. 6.23a. What happens to you? Does the chair you are sitting upon move in the opposite direction?3. Now, try to pull the table towards you, i.e., apply a force on the
(a)
Force applied
Force applied by the table on the girl
by the girl on
the table
table in the direction opposite to that in step 2 (Fig. 6.23b). In which direction does your chair move now?What conclusion can you draw from this activity? Each time, when you applied a force on the table, the table applied a force upon you in the opposite direction. You may have experienced this in various other situations.
If you are sitting on a bicycle and you want to move forward without pedalling, what do you do (Fig. 6.24)? You push the ground in the backward direction with your feet causing both you and the bicycle to move forward. This is because your feet apply a force on the ground and the ground applies a force on your feet in the opposite direction. This causes you to move forward along with the bicycle.
(b)
Fig. 6.23: Applying force on a table in the (a) forward direction,
(b) reverse direction

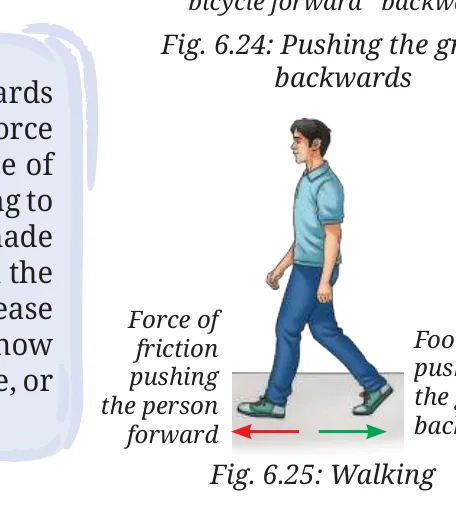

In fact, this is how you walk or run. Notice what you do while walking or running. You push the ground backwards with your feet (Fig. 6.25). The ground applies an opposite force on your feet to make you move forward. The force applied by the ground is in the form of friction. Thus, in this case friction helps you move rather than oppose you.
Ground pushing the rider along with the
Feet pushing the ground backwards
bicycle forward
Bridging Science and Society
backwards
While walking or running when you push the ground backwards with your foot, i.e., when your foot tries to slide backwards, the force of friction acts in the forward direction. Had there been no force of friction, your foot would have slipped backwards while attempting to push the ground and you would have fallen down. Grooves are made on the soles of footwear to increase the force of friction between the floor and soles. Similarly, treads on tyres of vehicles help increase the force of friction between the tyres and the road. You can now understand, why it is difÏcult to walk on wet polished floors or ice, or why it is risky to drive on roads covered with water or snow.
Force of
Foot pushing the ground backwards
friction pushing the person
forward
It was found experimentally that the magnitudes of such two forces are equal. Can you also observe this in some other way? You know how to measure the magnitude of the force using a spring balance.
Activity 6.6: Let us verify
1. Take two identical spring balances.2. Place them in horizontal position on a table and connect them by
their hooks as shown in Fig. 6.26. Fix the free end of one of the spring balances to an immovable object or hold it fixed by your hand.3. Imagine that you are pulling the free end of the other spring balance
with your other hand. Predict what will be the readings of their scales if the spring balances are stationary.4. Now, carry out step 3. Repeat it multiple times by varying the
magnitude of the force applied by you. Is your observation same as your prediction?
Fig. 6.26: Two spring balances connected together are pulled in opposite directions
The readings of the scales of two spring balances are the same every time. What does it indicate? It indicates that the forces applied by them on each other in the opposite direction are equal in magnitude.
All these observations are summed up in the Newton’s third law of motion, which can be stated as:
Whenever one object is exerting a force on a second object, the second object is simultaneously exerting an equal and opposite force on the first object.
Note
Force of
friction pushing a person up
The forces always occur in pairs but remember that these two forces act on two different objects.
Person pushing the trunk down

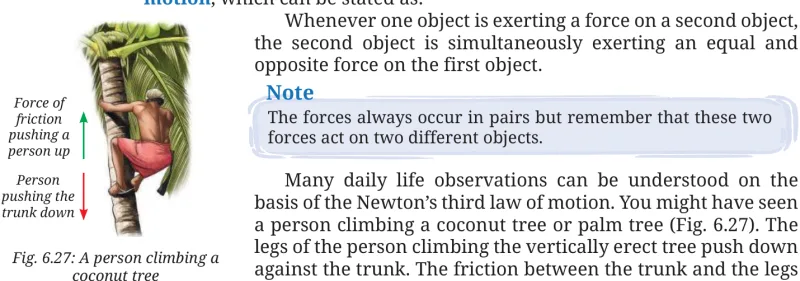

Many daily life observations can be understood on the basis of the Newton’s third law of motion. You might have seen a person climbing a coconut tree or palm tree (Fig. 6.27). The legs of the person climbing the vertically erect tree push down against the trunk. The friction between the trunk and the legs of the person pushes the person upwards by an equal force. Thus, it is harder to climb up the smooth tree trunks that have lesser friction.
coconut tree

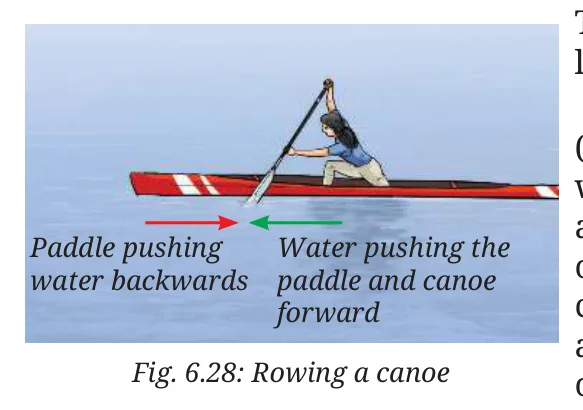

Have you ever noticed how a boat or a canoe moves forward (Fig. 6.28)? When the canoeist pushes the water backwards with their paddle, the water pushes the paddle forward with an equal force. The two forces are equal in magnitude but act on different objects, the paddle and the water, so they do not cancel each other. The force on the paddle makes the paddle and the canoe move forward. When the canoeist pushes harder on the water, the forward force on the paddle is larger, and the canoe’s velocity increases.
Paddle pushing water backwards
Water pushing the paddle and canoe forward
108
Exploration|Grade 9
Threads of Curiosity
Apart from how hard one paddles, there are several other factors (drag, water currents, mass of the canoe, style of rowing, etc.) which impact the speed of a canoe.
On television, you might have watched the rocket launches our country has done over the years. The launch of a rocket can also be explained on the basis of the Newton’s third law of motion. To understand that, let us first do a fun activity.
Activity 6.7: Let us understand
1. Collect a large balloon, a piece of drinking straw, adhesive tape, a long
thread, and two nails or hooks on two walls.2. Inflate the balloon and tie its neck with a small piece of thread.3. Stick the piece of straw with an adhesive tape on the surface of the
balloon such that, one end of the straw points towards the neck of the balloon, as shown in Fig. 6.29.4. Pass the thread through the straw and tie its two ends to the nails,
keeping the thread taut (Fig. 6.29).5. Remove the thread tied to the neck of the balloon and observe in which
direction the straw and the balloon move.
Straw
Exhaust gas
pushing the
rocket up
Balloon
Air
Fig. 6.29: Air rushing out of the balloon
The stretched material of the balloon applies a force on the air molecules inside to expel them as it shrinks in size. The air rushing out exerts an equal force on the balloon material in the opposite direction. This force causes the balloon to start moving in a direction opposite to the direction in which the air is rushing out.
A rocket moves in a similar manner (Fig. 6.30). Its engine produces gas and expels it in the downward direction, which in turn exerts an equal and opposite force on the rocket in the upward direction. This force on the rocket in the upward direction is larger than the weight of the rocket, so the net force is in the upward direction and the rocket lifts off.
Rocket engine
expelling gas
downwards
What will happen if the engine of a rocket moving in the space, fires in the direction of its motion? The exhaust gases will exert a force in the direction opposite to the direction of motion of the rocket, thereby slowing it down. This process was used by the Vikram lander of Chandrayaan-3 to slow down and attain the necessary velocity for a soft landing near the south pole of the Moon.
launching
Note
The pair of equal and opposite forces (as per the Newton’s third law of motion) acts on two different objects, thus, they do not balance each other. On the other hand, if two equal and opposite forces act on the same object, they balance each other.
Pause and Ponder
9. Why does a fireperson sometimes struggle when holding the pipe
issuing water? 10. Suppose a spacecraft is moving in a region of space where the
gravitational force acting upon it is negligible. Suggest how can it change its velocity.
You have learnt about contact and non-contact forces earlier. Is Newton’s third law applicable only for contact forces? Newton’s third law applies to all types of forces, contact or non-contact, that we come across in everyday mechanical situations (Figs. 6.31, 6.32, 6.33).
Grade 8CuriosityChapter 5
Fig. 6.31: Two bar magnets applying equal and
Fig. 6.32: Two similarly charged balloons applying equal and opposite
opposite magnetic forces on each other
electrostatic forces on each other
Example 6.7: As shown in Fig. 6.33, the Earth and the fruit apply equal and opposite gravitational forces on each other. Then why does the fruit move towards the Earth while the Earth doesn’t seem to move towards the fruit?Answer: Though the forces acting on both the Earth and the fruit are equal in magnitude; the mass of the Earth is so large (as compared to the fruit) that the acceleration of the Earth caused by the force is
Force on the fruit by
the Earth
Force on the Earth by the fruit
extremely small as per Fam=
. Thus, its effect on the Earth is too
fruit applying equal and opposite gravitational forces
small to be noticed.
on each other
Example 6.8: When a 0.1 kg bullet is fired from a 5 kg gun with a force of 2 N, the gun recoils. What are the magnitudes of initial accelerations of the bullet and the gun?Answer: From the Newton’s third law of motion, the recoil force on the gun is also 2 N.
Note
Even though the forces acting on the two interacting objects are always equal in magnitude, they do not, in general, produce equal acceleration. This is because the masses of the objects upon which they are acting may be different.
From the Newton’s second law of motion, the initial magnitudes of acceleration of gun
22 Nforce0.4 m smass of gun5 kg
−===
While the initial acceleration of bullet
22 Nforce20 m smass of bullet0.1 kg
−===
Even though the pair of forces are equal in magnitude, the magnitudes of accelerations are not equal because their masses are different.
110
Exploration|Grade 9
6.7 Forces Acting on a System of Objects
Until now, you studied the three laws of Newton as applied to a single object. These laws allowed you to predict the position and velocities of the object as forces act on it. But can we apply these laws to two or more objects connected together?
Consider two boxes of masses m1 and m2 placed on a frictionless horizontal surface and connected by a string (Fig. 6.34). A force F pulls Box 1 to the right. Box 1 applies a force on Box 2 via the string. By Newton’s third law, Box 2 applies an equal and opposite force via the string on Box 1. We call this force tension T. On Box 1, the force F acts to the right, while the tension force T acts to the left. On Box 2, the tension force T acts on the right. How can we find the acceleration of each box?
TFBox 1
Box 2
Fig. 6.34: A system of two boxes attached together by a string
One approach is to calculate the net force on each box separately and then use Newton’s second law to find acceleration. A simpler way is to consider the two boxes and the string as a single system. In this approach, the forces within the system (internal forces) need not be considered and only forces that act from the outside (external forces) matter. In our case, the tension T acting on both the boxes is the internal force, while the force F is the external force. Thus, using Newton’s second law (Eq. 6.1) the acceleration of the system is
()12mass of the system==+FFamm
(6.4)
The system of two boxes accelerates just like a single object of mass m1 + m2.If you had analysed the motion of the two boxes individually as you will learn to do in higher grades, the result would have been the same. Treating connected objects as a system often simplifies the analysis. This highlights the power of Newton’s laws in studying even complicated systems of objects.
NextLevel
Up
Ready to Go Beyond
Threads of Curiosity
In addition to F, the external forces will be gravitational force (m1 g + m2 g ) acting on the system downwards, which is balanced by the normal force (N1 + N2 ) acting on the system from the ground (Fig. 6.35).
While walking, your arms and legs move in a complex manner. Yet your overall motion can be studied by treating your body as a single object. Science often becomes simpler when we stop looking at parts and start looking at the whole.
N1 + N2
Box 1
Box 2
(m1 + m2) g
Fig. 6.35: External forces on a system of two
boxes attached together by a string
At a Glance
y
The force of friction acts on an object in the direction opposite to its
direction of motion. • Newton’s first law of motion: An object at rest remains at rest, and an
object in motion continues to move with a constant velocity, unless a net force acts upon the object. • Newton’s second law of motion: When a net force acts on an object,
the object accelerates in the direction of the net force. The magnitude of the acceleration is proportional to the magnitude of the net force and is inversely proportional to the mass of the object. • Newton’s third law of motion: Whenever one object is exerting a
force on a second object, the second object is simultaneously exerting an equal and opposite force on the first object.
